    System Products

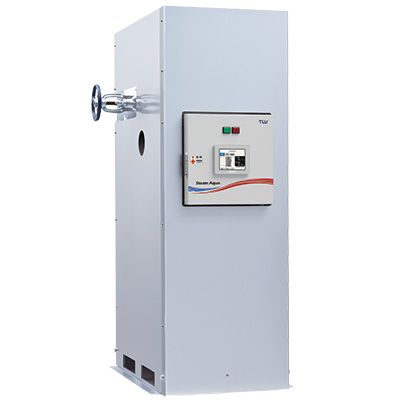

    Steam-Fired Instantaneous Water Heater (Large Capacity Type)

    SQ10

    Compact, high capacity 1000kW class instantaneous water heater with simple operation.

    The SteamAqua instantaneous water heater quickly produces a stable supply of 95 °C water for heating and sterilization in food product, chemical and pharmaceutical manufacturing as well as sanitary use in buildings, factories and hospitals.

    Benefits and Features

    • Hot water at the desired temperature will be supplied in just 30 to 40 seconds1)
    • Thanks to the spiral tube heat exchanger the entire system can be packaged into a space-saving footprint of only 0.7m2
    • Features Integrated control panel and built-in PowerTrap for condensate drainage
    • All-in-one package simplifies installation
    • Indirect heating with steam allows clean potable water to be heated and supplied as is, without contamination
    • Simple and reliable operation with touch panel for temperature setting and system control
    • Buffer water recirculation (option) and shutoff functions prevent overheating
    • Operation start-up/shutdown time can be set with the schedule function (daily and weekly timers) to reduce excess power consumption
    1) May vary depending on actual operating conditions

    Application Areas

    • Hot water production
    • Air conditioning for buildings and factories
    • Heating, cleaning and sterilization of food and other products
    • Sterilization with high-temperature water
    • Chemical and pharmaceutical manufacturing

    Product Details

    Model Photo Thermal Capability Class Temperature setting system Base & Frame Unit Material Specifications Manual
    SQ10 1000kW Touch Panel Carbon Steel (*1) Specifications (English) Manual (English)
    • The latest version of each product's instruction manual can be found on this page.
    • *1: Stainless steel also available as an option.
    • When single pass method is used, if used for baths, handwashing or anywhere people may come in contact with hot water, install a thermostat-equipped hot/cold water mixing device. Additionally, when used in applications that may fall below the minimum required flow rate, a hot water recirculation system is required. Contact TLV for more information.
