    Steam Traps with Bypass Valve

    BT Series/PBT Series/MBT Series/J3S-X Series

    Shorten start-up and batch cycles; systemize bypass blowdown

    Free Float® steam traps with a built-in bypass valve

    Free Float® Steam Trap Series  Pamphlet (1439 KB)

    Bypass Blowdown Steam Traps Pamphlet (634 KB)

    Benefits and Features

    Space-saving Design

    The integral bypass valve eliminates the need for a separate bypass line, thereby saving space at the trap installation.

    Reduced Pipeline Costs

    Installation costs are reduced, as neither a bypass valve nor bypass piping are required.

    Energy Conservation

    Utilizes the TLV Free Float®. The combination of the valve opening being under a continuous water-seal and the 3-point float seating prevents steam leakage.

    Long Service Life

    The spherical Free Float® rotates, allowing any point on its surface to act as the valve seal and thus ensuring long service life.

    Inline Trap Maintenance

    Maintenance is possible without removing the trap from the piping. For disassembly and cleaning, simply remove the four bolts securing the cover of the trap.

    Application Areas

    • Steam main lines, steam headers, presses, tracers, etc.

    Product Details

    Model Photo Connection Body Material Type of Valve PMO (MPaG) TMO (°C) Discharge Capacity (kg/h) Automatic Venting Specifications Manual
    BT3N Screwed Cast Iron
    (FC250)
    Hand-operated 1.0 185 425 Initial air Enquire Manual
    MBT3N Screwed Cast Iron
    (FC250)

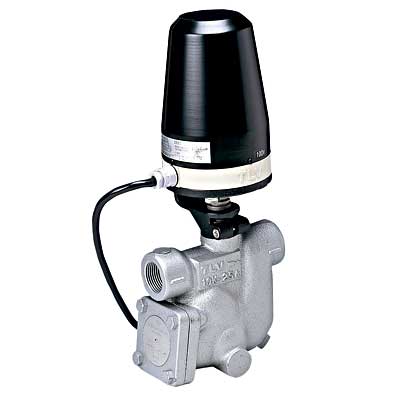

    Electronic 1.0 185 425 Initial air Enquire Manual
    PBT3N Screwed Cast Iron
    (FC250)

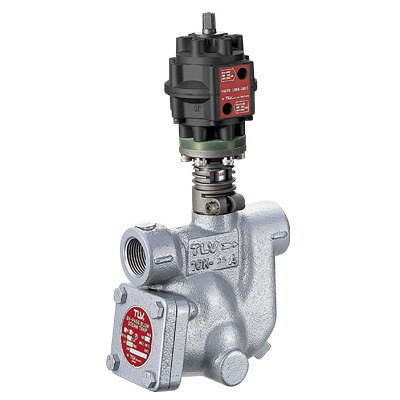

    Pneumatic 1.0 185 425 Initial air Enquire Manual
    J3S-X-BV Screwed Stainless (ASTM A351 Gr.CF8) Hand-operated 1.0 185 760 Initial air and high-temperature air during operation Specifications Manual
    Flanged
    J3S-X-PB Screwed Stainless (ASTM A351 Gr.CF8) Pneumatic 1.0 185 760 Initial air and high-temperature air during operation Specifications Manual
    Flanged
    J3S-X-RV Screwed Stainless (ASTM A351 Gr.CF8) Hand-operated (*1) 2.1 220 760 Initial air and high-temperature air during operation Specifications Manual
    Flanged
    • *1: Can be used to eliminate steam locking
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature
