    Fluid Control Equipment

    Vacuum Breakers

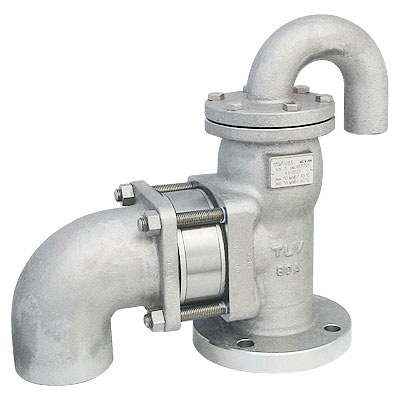

    VB3 Series

    Large Intake Capacity in a Compact Body

    Prevent damage to equipment related to water supply lines and tanks. When pumping stops a large amount of air is drawn into the water supply line as a vacuum begins to form, preventing damage to equipment installed on the line. TLV adapted the VB3 for seawater use by producing a super duplex cast stainless steel version.

    VB3 / VB3-H  Pamphlet (385 KB)

    Benefits and Features

    • Large capacity in a compact body. (approx. 2000 Nm³/h with 0.03 MPa differential pressure)
    • Combination of Free Float® and spring-loaded check valve allow for high sealing capability and durability
    • The only moving parts are the hinge-less, lever-less free float and the center-guided check valve with coil spring support for long, trouble-free service life. Nitrile rubber ensures a tight seal for both valves.
    • Free Float® rapid initial air vent allows for easy venting of initial air upon system startup*
    • Suitable for use in salt water processes

    *While acting as an initial air vent, once the valve closes after discharging initial air, it will not open again, even if air accumulates inside the product, until internal pressure drops to near atmospheric pressure. Install an automatic air vent if air flows into the system during operation.

    Application Areas

    Applications where a large amount of air is necessary to be introduced to water supply lines to prevent a vacuum from forming, such as:

    • Elevated Cooling Water Piping
    • Coastal Seawater Supply

    Product Details

    Model Photo Connection Body Material Applicable Fluids PMO (MPaG) TMO (℃) Max. Intake Capacity
    (l/min)*
    Max. Discharge Capacity
    (l/min)*
    Specifications Manual
    Main Connection Air Intake Port
    Air Intake/Discharge Port
    VB3 Flanged Screwed Super Duplex Cast Stainless Steel
    (CD3MWCuN)
    Water, Seawater 1.0 90 46000 3200 Specifications Enquire
    VB3-H Flanged Screwed Cast Steel
    (ASTM A216
    Gr. WCB)
    Water
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature
    • The latest version of each product's instruction manual can be found on this page.
    • *Capacities are equivalent capacities of air at 20 °C under atmospheric pressure.
