    Fluid Control Equipment

    Manifolds

    M Series/V1 Series/V2 Series

    Streamline your Steam Line

    A typical plant employs countless steam supply and condensate recovery lines with huge numbers of valves and steam traps. TLV's rugged and versatile all-in-one packages for steam distribution and condensate collection simplify the control and management of your steam system.

    When building a new plant, if manifolds are incorporated into the design you can:

    • Standardize designs and increase efficiency
    • Reduce on-site construction days
    • Reduce man-hours for welding and inspection

    All these issues are solved at once. The piping can be managed efficiently, and the plant can be made clean and safe.

    Steam and Condensate Manifolds Pamphlet (1122 KB)

    Benefits and Features

    Reduces Design and Piping Labor

    The simple installation of a manifold to steam or condensate piping often reduces the labor necessary for both design and piping construction.

    Optimized management of valves and steam traps

    By packaging valves and steam traps together, a manifold offers optimization of management. Inspection and maintenance are easy after installation.

    Package Features Optimal Valve and Steam Trap

    The manifolds for condensate collection can mount various types of steam trap with the valves as a package, or can mount the trap stations as a more simplified package.

    Extensive Product Line-up

    A broad line-up of manifolds with various numbers of branches, including 4-branch, 8-branch and 12-branch models. Customized designs to meet the customer's specifications are also available.

    Application Areas

    • Branches and convergences of tracing and steam mains
      Suitable for use where there are large numbers of steam pipelines branching off of a steam main, or on tracers where large numbers of condensate pipelines converge onto a condensate return line.

    Product Details

    Model Photo Connections No. of
    Connections
    Body Material PMO (barg) TMO (°C) Specifications Manual
    Steam Outlet(*1)
    Condensate Inlet(*2)
    Condensate Outlet(*3)
    Steam Inlet(*1)
    Condensate
    Outlet (*2)
    Drain (*1)
    Blowdown (*2)

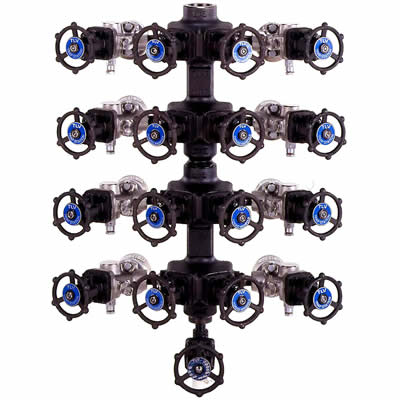

    M4*/SM/CM Screwed Socket Welded Socket Welded 4 Carbon Steel
    (ASTM A105)
    50 400 Specifications Manual
    Socket Welded

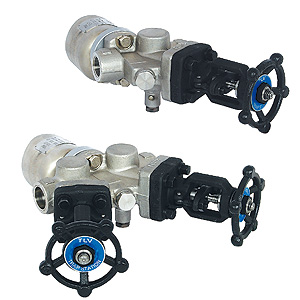

    V1 Screwed - - - Stainless Steel
    (SUS304)
    46 425 Specifications Manual
    Socket Welded - - -
    V2 Screwed - - - Stainless Steel
    (SUS304)
    46 425
    Socket Welded - - -
    • The latest version of each product's instruction manual can be found on this page.
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature
    • *M4 is the basic manifold; specifications are for M4 only.
    • *1: When used as a steam manifold
    • *2: When used as a condensate manifold
    • *3: For V1 / V2 models
