Vacuum Steam Heating System

The VM4HPN is now available for vacuum steam heating systems Vacuumizers, which heat with steam even at temperatures below 100°C, enabling faster and more precise heating than hot water, with improved anti-erosion and corrosion performance, rust resistance, and easier maintenance than ever before.

Vortex Flowmeter (Transmitter)

In addition to high-precision measurement and wide measurement range (rangeability), all models are equipped with a built-in temperature sensor for correction, enabling mass flow correction calculation of saturated steam by the transmitter alone.
In addition, some models can be optionally equipped with a pressure sensor function, which enables detection of superheated steam and measurement of dryness using actual measured pressure and temperature values.

Vacuum Steam Heating System

The VM3HPN is a vacuum steam heating system that heats with steam even at temperatures below 100°C, enabling faster and more precise heating than hot water. The VM3HPN has improved anti-erosion and corrosion performance, is less prone to rust, and is easier to maintain than previous models.

Bypass blow valve

This is a bypass blow valve that prevents leakage of the internal valve even at high pressure and high temperature during trap bypass blow at plant startup.
Prevents wall thinning due to scale entrapment and erosion, which are causes of inner valve leakage.
Even after bypass blow at high pressure, such as differential pressure exceeding 4 MPaG, the valve does not leak and provides high sealing performance for a long period of time.

Digital indicating controller

The only controller that can be used in combination with MC-COS series control valves.
PID control is also possible for general-purpose control valves. Compatible with various types of measurement inputs and equipped with a variety of functions as standard, including 16-point memory of target setpoints, 4 event outputs, and 3 analog outputs.
Setting values can be read/written from/to a PC using a dedicated cable (sold separately).

Steam compressor

The SC series steam compressors, which boost the pressure of low-pressure steam for effective use, are now available in the SC14/SC21/SC31 large-capacity types. The maximum intake steam flow rate of 3100 kg/h can be used not only for waste heat recovery but also for supply-demand balance compensation of the main steam system.

Free-float steam trap for equipment

The only free-float steam trap for equipment with vertical piping.
As with the J3X for horizontal piping, it has a large drainage and exhaust capacity, while the kinematic float support mechanism provides high sealing performance even when the drainage is very small. Steam loss is minimized.

Direct-acting pressure reducing valve for air

Lightweight and compact direct-acting pressure reducing valve with stainless steel body and main parts.
By designating it for air use only, a soft seat with excellent sealing performance is used for the main valve seat to prevent pressure buildup at the shut-off point.

Vacuum steam heating system for food and beverage (VACUUMIZER)

A new series of compact and low-cost vacuum steam heating system Vacuumizer, which can perform rapid and uniform heating using saturated steam even at temperatures below 100°C, is now available.
It speedily heats food and beverage factories to 70-90°C without scorching or uneven heating.

Mechanical Pump (PowerTrap)

The most compact new mechanical pump that collects condensate without electricity is now available.
With a minimum head of 155 mm, it can be used in small facilities where the condensate outlet tends to be low. Ideal for condensate recovery in open systems.

Steam trap with integrated pump function (PowerTrap)

A new medium-capacity type that can be used up to 1.4 MPaG has been added to steam traps that also have a pump function.
With a minimum head of 300 mm, it can be installed in facilities with low drain outlets. It is ideal for condensate recovery in air-conditioning and refrigeration equipment and for countermeasures against condensate retention that causes water hammer and metal corrosion.

Mechanical pump (PowerTrap)

A new medium-capacity mechanical pump that can be used up to 1.4 MPaG has been added to the mechanical pumps that collect condensate without using electricity.
With a minimum head of 300 mm, it can be installed in facilities with low condensate outlets. It is ideal for condensate recovery in open systems where condensate from multiple units is collected and pumped.

Direct-acting pressure reducing valve for clean steam

The structure of this valve does not hold condensate, making it difficult for bacteria to grow, making it ideal for steam line pressure reduction in autoclaves, sterilizers, and sterilizers.
Easy to disassemble, clean, and sanitize. Prevents external leakage of steam, and features stable operation and long life.

Digital Indicating Controller

Easy-to-use controller with a compact body, large, easy-to-read display screen, speed response, and speed convergence.
Combined with electric valves, pneumatic valves, solenoid valves, and control valves (CV5/CV10/CV-COS, etc.), automatic control of process pressure, flow rate, level, etc. can be performed.

Ductile iron bellows valve

Large bore size available for immediate delivery! In addition to fixed repair work, it is also available in time for sudden construction work.
Large bore valves with long life without leakage are ideal for steam headers and steam mains, as replacement work is not required for a long period of time. The light handwheel improves work efficiency.

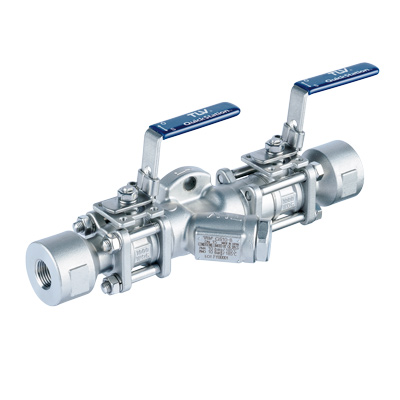

Trap Station

Stainless steel body trap station integrating bellows valve and steam trap enables compact piping design.
It reduces design and piping installation man-hours and improves maintainability.

Trap Station

Trap station made of forged steel body or stainless steel with integrated piston valve and steam trap enables compact piping design.
It reduces design and piping installation man-hours and improves maintainability.

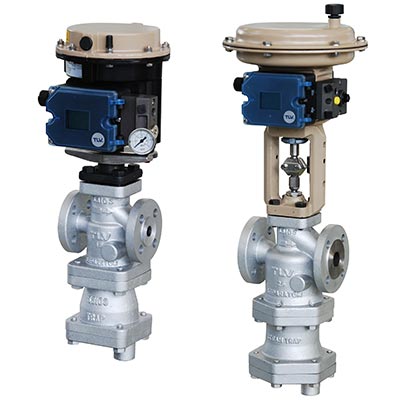

Pneumatic control valve (with built-in separator and trap)

Pneumatic control valve that can be used as an automatic pressure control valve or as a remotely operated pressure reducing valve.
It has a built-in separator and steam trap to supply high quality steam.

Pneumatic Control Valve for Steam

Pneumatic control valve that can be used as an automatic pressure control valve or as a remotely operated pressure reducing valve.
This model without separator/trap is suitable for locations where a separator is already installed.

Steam trap with integrated pump function (PowerTrap)

A new steam trap with a pump function that can be used up to 1.4 MPaG has been added to our steam trap lineup.
With a minimum head of 350 mm, it can be installed in facilities with low drain outlets. It is ideal for condensate recovery in air-conditioning and refrigeration equipment and for countermeasures against condensate retention that causes water hammer and metal corrosion.

Mechanical pump (PowerTrap)

A new mechanical pump that collects condensate without electricity and can be used up to 1.4 MPaG has been added to the lineup.
With a minimum head of 350 mm, it can be installed in facilities with low condensate outlets. It is ideal for condensate recovery in open systems where condensate from multiple units is collected and pumped.

Waste high temperature water heat exchanger

The flush tank and waste steam heat exchanger are combined into one unit to more efficiently recover waste hot water mixed with flush steam in its entirety.

Condensate Recovery Pump for Vacuum

A simple specification vacuum condensate recovery pump compliant with the Ministry of Land, Infrastructure, Transport and Tourism's Standard Specifications for Public Building Construction (mechanical equipment construction version).

Bypass Blow Trap

Manual ball valve on the cover allows for quick operation when blowing a large volume of air, such as during start-up.

Bypass Blow Trap

Equipped with an electrically operated ball valve in the cover section for remote operation or automatic control of blowing in combination with a temperature sensor, timer, etc.

Bypass Blow Trap

Equipped with a pneumatic ball valve in the cover section, the trap can be operated remotely or by automatic control combined with a temperature sensor or timer, etc.

Bypass Blow Trap

A manual control valve with opening indication is integrated in the lid to shorten start-up time and eliminate steam locking.

Manifold

This manifold has a forged steel body with a piston valve in the valve section.
It is used for branch piping of steam and collective piping of condensate in tracing and general processes, etc., and realizes compact piping.

Cycle counter

This is a cycle counter to be attached to the GP series power traps.
It counts the number of times the power trap operates intermittently. It can be used to monitor the operating condition and check the maintenance cycle.

Large capacity free-float air trap

Large capacity drain trap for compressed air systems.
The free-float type allows continuous drainage operation with no drainage delay. It can handle a large capacity of 20 tons per hour.

Free Float® steam trap for equipment

Newly introduced with condensate discharge capacity between J5X and J7X.
Selection can now be more finely matched to on-site applications than ever before. Made of corrosion-resistant stainless steel, it is effective in environments where durability is required.

Steam compressor

Heat dissipation to the atmosphere, heat energy of the released steam can be recovered and boosted to be reused as low or medium pressure steam.

Separator filter

Separator filter for steam and gases (non-toxic and non-flammable) is now available.
Cyclone separator + sintered wire mesh filter maintains performance for a long period of time. Easy to clean and can be used repeatedly.

Spring loaded disc-type check valve

Unique center bar system for durability. Wafer type with flange clamping.

Free Float® steam trap for equipment (high temperature and high pressure)

The JH series has three important features for equipment steam traps: a large condensate discharge capacity, an automatic blowing mechanism with strong air rejection capability, and a design that can be used under high pressure.

Free-float steam trap for equipment

The JX series is a steam trap for equipment that continuously discharges condensate and has a large condensate discharge capacity in a compact design, as well as an automatic blowing mechanism with powerful air rejection capability thanks to the use of an X-element.

Manifolds

The M series manifolds reduce the man-hours required for designing and installing steam or condensate piping, and the packaged design of the valve and steam trap also reduces maintenance costs and man-hours.

Bypass Blow Trap

The bypass blow trap responds to the need for a convenient and simplified piping system by integrating a bypass valve and steam trap into a single unit.

Free Float® Steam Traps for Main Lines

The SST series is a series of steam traps optimally designed for steam transport piping applications, taking into consideration that steam loss during condensate discharge operation is small and performance can be maintained stably over a long period of time.

Steam trap with built-in pump function for air conditioning (PowerTrap)

Operates with an extremely low water head of 155 mm. Ideal for stall protection for air handling units and small steam air heaters.
No exhaust pipe is required for easy installation. Stainless steel version is also available as a standard product.

Separator

This is an air-water separator that forcibly separates condensate generated and mixed in steam or air piping.
The built-in cyclone swirls steam or air at high speed to separate heavy condensate by centrifugal force, achieving a separation efficiency of 98% (at steam flow velocity of 30 m/s).

Mechanical pump system package (PowerTrap)

The PowerTrap GP series condensate recovery pumps, which are steam/air driven and require no electricity, are now available in three new system packages that combine the necessary equipment in a compact package.

Large-capacity vacuum breaker

This is a compact, large-volume vacuum breaker valve.
For seawater applications, duplex stainless steel is used for its high corrosion resistance.

Steam trap with built-in pump function (PowerTrap)

Operated by steam or air pressure without electricity. It is effective in eliminating condensate retention in the equipment.
Even under conditions where condensate is difficult to be discharged with the trap, it can be forcibly eliminated with the pump function. Ideal for closed systems that completely recover waste heat and water resources from steam-using equipment condensate.

Mechanical Pump (PowerTrap)

Pump that pumps condensate by steam or air pressure without using electricity.
Ideal for open systems that collectively recover condensate waste heat and water resources discharged from multiple steam-using units.

Condensate Recovery Pump

CP-N, with its high head and high temperature resistance, is suitable for closed recovery applications such as direct recovery to boilers, deaerators, etc. CP-N offers new value in condensate recovery.

Pressure reducing valve with built-in separator and trap

The pressure reducing valve itself forcibly separates and eliminates condensate, thus supplying 100% dry steam to the process.

Temperature control trap (with built-in descaling function)

Effective for tracing lines at temperatures below 80°C.
The descaling function eliminates valve seat clogging while still piping.

Pneumatic control valve (with built-in separator and trap)

A new type of control valve with built-in cyclone separator and free-float steam trap to improve steam quality.

Maintenance equipment

Pocket type checker for simple on-site diagnosis.
Utilized for trap and valve leakage and bearing diagnosis. Leakage of valves in traps and gas piping is automatically determined in a simple manner.

Steam decompression and temperature reduction system

Space-saving, high-precision depressurization and temperature reduction system.
