Fluid Control Equipment
Electro-Pneumatic Control Valves
CT Series
Multi-purpose Control Valves
Extremely versatile pneumatic control valves for use with a variety of fluids such as steam, air and water.
Benefits and Features
CT16
Compact electro-pneumatic multi-purpose control valve for steam and non-hazardous fluids.
- Valve: globe valve with Class IV metal sealing and drainage port.
- Drainage port: help prevent trim erosion due to high condensate levels on start-up by installing a steam trap or blow valve.
- Efficient pneumatic actuator: compact installation, rolling diaphragm ensures linearity over the operating stroke and maximizes lifespan.
- Digital I/P positioner: auto-tuning for tight shut-off and improved low flow control, and easy operation with LCD display showing valve travel and error codes.
- Self-adjusting V-ring packing minimizes seal leaks, stem wear, and stiction.

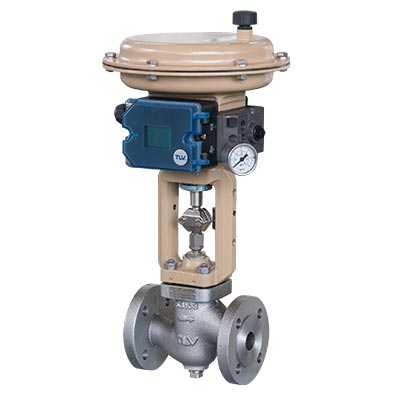

CT20D
Durable and versatile electro-pneumatic control valve for steam and non-hazardous fluids.
- Valve: globe valve with Class IV metal sealing and drainage port, with equal percentage and linear characteristics.
- Drainage port: help prevent trim erosion due to high condensate levels on start-up by installing a steam trap or blow valve.
- High-performance pneumatic actuator: versatile multi-spring actuator, rolling diaphragm ensures linearity over the operating stroke and maximizes lifespan.
- Digital I/P positioner: auto-tuning for tight shut-off and improved low flow control, and easy operation with LCD display showing valve travel and error codes.
- Self-adjusting V-ring packing minimizes seal leaks, stem wear, and stiction.
- Intrinsically safe version and a wide variety of other special options are available for exceptional performance in demanding duties.
Application Areas
- Suitable for automatic control of pressure, temperature and flow rate of water, steam, etc.
Product Details
| Model | Photo | Connection | Body Material | Applicable Fluids | PMO (barg) | TMO (°C) | Characteristic | Valve Seat | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CT16 |  | Flanged | Ductile Cast Iron | Steam Water Air | 32 | 220 | Equal percentage | Stainless | Specifications | Manual |
| Cast Stainless Steel | ||||||||||
| CT20D |  | Flanged | Ductile Cast Iron | Steam Water Air | 32 | 220 | Equal percentage or linear | Stainless | Specifications | Manual |
| Cast Stainless Steel |
| Model | Photo | Connection | Body Material | Applicable Fluids | PMO (barg) | TMO (°C) | Characteristic | Valve Seat | ||
|---|---|---|---|---|---|---|---|---|---|---|
| CT16 | | Flanged | Ductile Cast Iron | Steam Water Air | 32 | 220 | Equal percentage | Stainless | Specifications | Manual |
| Cast Stainless Steel | ||||||||||
| CT20D | | Flanged | Ductile Cast Iron | Steam Water Air | 32 | 220 | Equal percentage or linear | Stainless | Specifications | Manual |
| Cast Stainless Steel |
- PMO = Maximum Operating Pressure
- TMO = Maximum Operating Temperature
The latest version of each product's instruction manual can be found on this page.
