    Fluid Control Equipment

    Electro-Pneumatic Control Valves

    CT Series

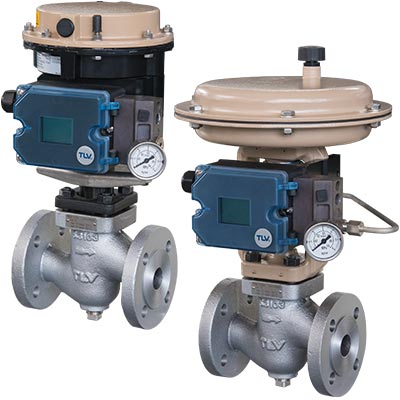

    CT16 CT20

    Multi-purpose Control Valves

    Extremely versatile pneumatic control valves for use with a variety of fluids such as steam, air and water.

    Benefits and Features

    CT16

    Compact electro-pneumatic multi-purpose control valve for steam and non-hazardous fluids.

    • Valve: globe valve with Class IV metal sealing (optional Class VI soft sealing) and drainage port.
    • Drainage port: help prevent trim erosion due to high condensate levels on start-up by installing a steam trap or blow valve.
    • Efficient pneumatic actuator: compact installation, rolling diaphragm ensures linearity over the operating stroke and maximizes lifespan.
    • Digital I/P positioner: auto-tuning for tight shut-off and improved low flow control, and easy operation with LCD display showing valve travel and error codes.
    • Self-adjusting V-ring packing minimizes seal leaks, stem wear, and stiction.
    CT20

    Durable and versatile electro-pneumatic control valve for steam and non-hazardous fluids.

    • Valve: globe valve with Class IV metal sealing (optional Class VI soft sealing) and drainage port, with equal percentage and linear characteristics.
    • Drainage port: help prevent trim erosion due to high condensate levels on start-up by installing a steam trap or blow valve.
    • High-performance pneumatic actuator: versatile multi-spring actuator with multiple Cv/Kvs value options, rolling diaphragm ensures linearity over the operating stroke and maximizes lifespan.
    • Digital I/P positioner: auto-tuning for tight shut-off and improved low flow control, and easy operation with LCD display showing valve travel and error codes.
    • Self-adjusting V-ring packing minimizes seal leaks, stem wear, and stiction.
    • Intrinsically safe version and a wide variety of other special options are available for exceptional performance in demanding duties.

    Application Areas

    • Suitable for automatic control of pressure, temperature and flow rate of water, steam, etc.

    Product Details

    ModelPhotoConnectionBody MaterialApplicable FluidsPMO (MPaG)TMO (°C)CharacteristicValve SeatSpecificationsManual
    CT16FlangedCast Steel (ASTM A216 Gr.WCB)Steam
    Water
    Air
    2.0220Equal percentageStainlessSpecificationsManual
    Cast Stainless Steel
    (ASTM A351
    Gr.CF8)
    CT20FlangedCast Steel (ASTM A216 Gr.WCB)Steam
    Water
    Air
    2.0220Equal percentage or linearStainlessSpecificationsManual
    Cast Stainless Steel
    (ASTM A351
    Gr.CF8)
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature

    The latest version of each product's instruction manual can be found on this page.
