Maintenance Parts
Maintenance and repair parts for product overhaul and repair
TLV offers kits containing commonly repair parts for our main products (see note).
The kits contain gaskets and metallic parts required for disassembly and reassembly, or parts required to restore functionality, and can be ordered without a product drawing as long as the product model name is known.
Since all necessary parts are included in one set, there is no need to worry about missing parts when the time for maintenance comes around.
Maintenance parts

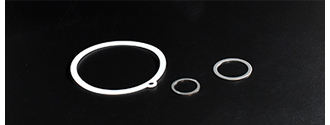

Gaskets required for reassembly (after disassembly)

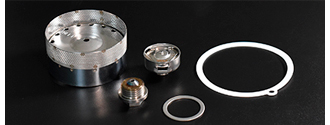

Repair parts
Maintenance parts + essential parts (consumable parts such as valve seats)
Note: Some long-running product parts may have updated designs, but are interchangeable.

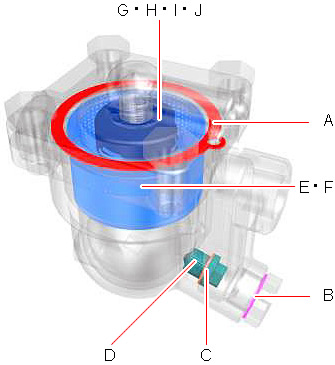

Example: J5S-X
Maintenance Parts |
Repair Parts |
||
---|---|---|---|
A | Cover Gasket | ● | ● |
B | Orifice Plug | ● | ● |
C | Orifice Gasket | ● | ● |
D | Orifice | ー | ● |
E | Screen | ー | ●(1) |
F | Float cover | ー | |
G | Guide | ー | ● |
H | X-element | ー | ● |
I | Snap ring | ー | ● |
J | Air Vent Valve seat | ー | ● |
*1: The screen and float cover are spot-welded together.
Kit details and items to be checked before operation

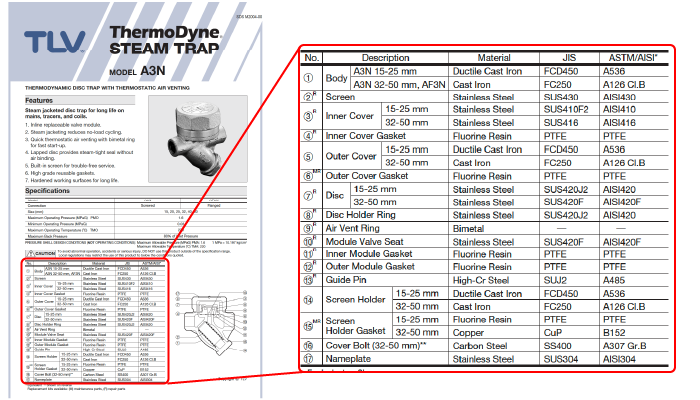

For details of the contents of each kit, refer to the product component list in the product datasheet.
Refer to Pre-maintenance for checks that should be performed before the replacement work.
