    Fluid Control Equipment

    Electric Boiler Feed Pumps

    Guardian and Guardian-Plus Series

    Ensure Smooth Operations with High-performance Boiler Feed Pumps

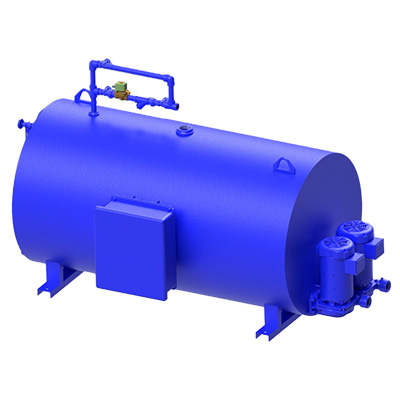

    Guardian and Guardian-Plus boiler feed pumps are used to pump condensate and makeup water directly into the boiler(s). Pumping action is controlled by a boiler-mounted level controller that senses boiler water-level requirements. A float operated valve regulates the inflow of makeup water.

    Condensate Return & Boiler Feed Water Skid Systems Pamphlet

    Benefits and Features

    • Space-saving mechanical configurations
    • Expertly designed for maneuverability
    • Simplicity in field attachment
    • Versatile compatibility of handling 250˚F water
    • Assembled in the US by a team of professional craftsmen
    • Simplex units equipped for future second pump (except for GC6A and GS10A)
    Fully Customisable
    • Wide range of pump sizes, electrical motors, tank sizes, tank materials
    • Extensive selection of ancillaries such as isolation valves, gauges, starter types, & level switches
    • Suitable to a wide range of applications, loads & pressures
    • Control panel options available for Guardian-Plus Condensate Return & Boiler Feed systems
    Quality Engineering
    • Engineered solutions based on a consultative approach to application review and product selection
    • Quality component engineering & assembly with a proven track record of years of industrial performance

    Application Areas

    • Food & beverage
    • Fine chemicals
    • General chemicals
    • Hospitals
    • Buildings
    • University campuses

    Product Details

    Model Photo Pump Capacity (GPM) Discharge Pressure (psig) Motor Power (HP) Motor Speed (RPM) Motor Voltage (V) Motor Phase Tank Capacity (gal) Tank Material
    & Configuration
    Specifications Manual
    Guardian

    10 - 18 20 3450 115/208-230 Single 6-21 Cast Iron Specifications Manual
    10-20 Carbon Steel,
    rectangular
    49-117 Carbon Steel,
    cylindrical
    Guardian-Plus

    1.5 - 150 10-70 ⅓ to 10 1750 or 3450 115/208-230 Single/Three 15-110 Cast Iron Specifications Manual
    21-110 Carbon Steel,
    rectangular
    49-1000 Carbon Steel,
    cylindrical

    The latest version of each product's specifications can be found on this page.
