Fluid Control Equipment
Bellows Sealed Valves

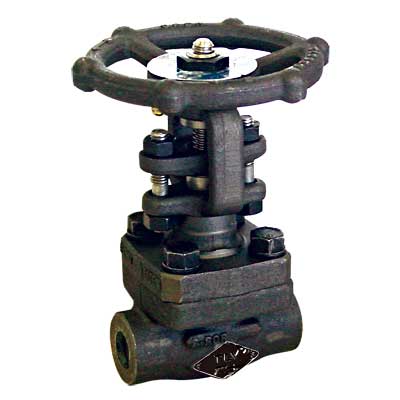

BE3L
Bellows sealed valves with a no-leak gland.
Benefits and Features
Maintenance-free at stem gland
- Bellows-type gland prevents leakage to the outside. No need to tighten or replace the gland packing.
- The stellite hardened surfaces on the valve plug and valve seat offer superior durability and sealing properties.
- Reliable ASTM/AISI A105 robust forged steel body.
Application Areas
- Steam, hot water, heating mediums, etc.
Product Details
| Model | Photo | Connection | Body Material | Port | PMO (psig) | TMO (°F) | Specifications | Manual |
|---|---|---|---|---|---|---|---|---|
| BE3L | | Screwed | Carbon steel (ASTM A105) | Reduced Port | 710 | 752 | Specifications | Manual |
| Socket Welded | ||||||||
| Flanged | 300 |
- PMO = Maximum Operating Pressure
- TMO = Maximum Operating Temperature
The latest version of each product's instruction manual can be found on this page.
