Fluid Control Equipment

Electric Condensate Return Pumps

Guardian and Guardian-Plus Series

Condensate recovery pumps with motorized condensate transport.

Guardian and Guardian-Plus condensate return systems quickly collect and pump condensate back to the boiler feed unit. Pumping action is controlled by either float switch (simplex) or mechanical alternator (duplex) designs which energize the pump motor(s) when the liquid level reaches a set fill height.

Condensate Return & Boiler Feed Water Skid Systems Pamphlet

Benefits and Features

  • Space-saving mechanical configurations
  • Expertly designed for maneuverability
  • Simplicity in field attachment
  • Versatile compatibility of handling 250˚F water
  • Assembled in the US by a team of professional craftsmen
  • Simplex units equipped for future second pump (except for GC6A and GS10A)
Fully Customisable
  • Wide range of pump sizes, electrical motors, tank sizes, tank materials
  • Extensive selection of ancillaries such as isolation valves, gauges, starter types, & level switches
  • Suitable to a wide range of applications, loads & pressures
  • Control panel options available for Guardian-Plus Condensate Return & Boiler Feed systems
Quality Engineering
  • Engineered solutions based on a consultative approach to application review and product selection
  • Quality component engineering & assembly with a proven track record of years of industrial performance

Application Areas

  • Food & beverage
  • Fine chemicals
  • General chemicals
  • Hospitals
  • Buildings
  • University campuses

Product Details

Model Photo Pump Capacity (GPM) Discharge Pressure (psig) Motor Power (HP) Motor Speed (RPM) Motor Voltage (V) Motor Phase Tank Capacity (gal) Tank Material
& Configuration
Specifications Manual
Guardian

10 - 18 20 3450 115/208-230 Single 6-21 Cast Iron Specifications Manual
10-20 Carbon Steel,
rectangular
49-117 Carbon Steel,
cylindrical

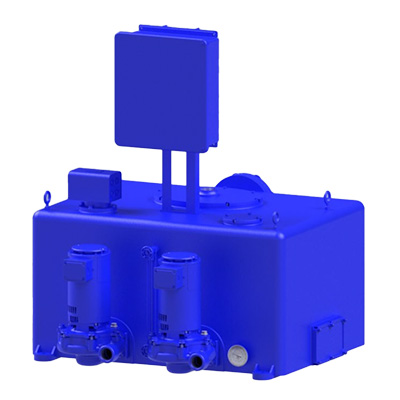

Guardian-Plus

1.5 - 150 10-70 ⅓ to 10 1750 or 3450 115/208-230 Single/Three 15-110 Cast Iron Specifications Manual
21-110 Carbon Steel,
rectangular
49-1000 Carbon Steel,
cylindrical

The latest version of each product's specifications can be found on this page.
