Fluid Control Equipment
Free Float® Drain Traps
SS1VA Series/JAH Series
Traps for the removal of condensate from air and non-flammable, non-toxic gas lines
Benefits and Features
Safe Operation, Energy Conservation
Free Float® construction using a precision-grounded Free Float®.
The valve opening is under a continuous water-seal, so no air can escape through the valve.
The float’s 3-point seating holds the float tightly against the valve opening even under small condensate loads, so no air is allowed to escape.
Long Service Life
The high precision spherical float rotates, allowing its entire surface to function as valve sealing surfaces and thus ensuring long service life.
Easy Maintenance
Maintenance is possible while still installed in the piping.
Application Areas
- Removal of condensate from air-using facilities.
Product Details
| Model | Photo | Connection | Body Material | PMO (psig) | TMO (°F) | Orifice Material | Discharge Capacity (lb/h) | ||
|---|---|---|---|---|---|---|---|---|---|

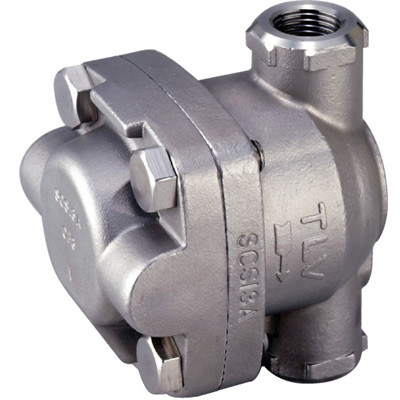

| SS1VA-R |  | Screwed | Stainless Steel (ASTM A351 Gr. CF8) | 150 | 212 | FPM | 300 | Specifications | Manual |
| SS1VA-M | Screwed | Stainless Steel (ASTM A351 Gr. CF8) | 300 | 428 | Metal | 1000 | |||

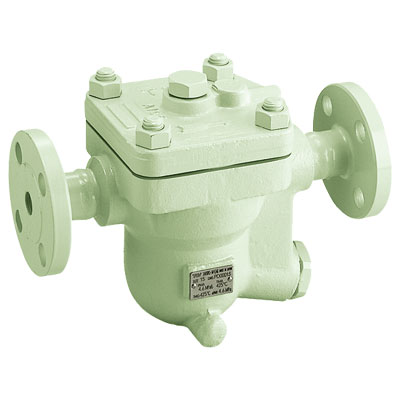

| JAH5RA-R |  | Screwed | Carbon Steel (ASTM A216 Gr.WCB) | 315 | 212 | FPM | 600 | Specifications | Manual |
| Socket Welded | |||||||||
| Flanged | |||||||||

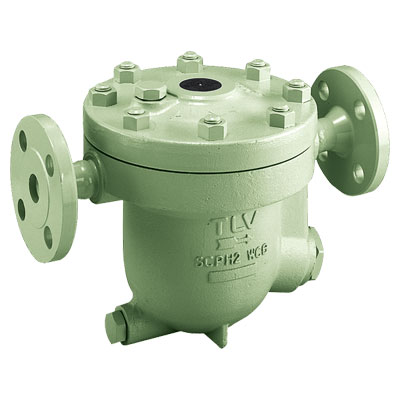

| JAH7RA-R |  | Screwed | Carbon Steel (ASTM A216 Gr. WCB) | 600 | 212 | FPM | 3000 | Specifications | Manual |
| Socket Welded | |||||||||
| Flanged |
| Model | Photo | Connection | Body Material | PMO (psig) | TMO (°F) | Orifice Material | Discharge Capacity (lb/h) | ||
|---|---|---|---|---|---|---|---|---|---|
| SS1VA-R | | Screwed | Stainless Steel (ASTM A351 Gr. CF8) | 150 | 212 | FPM | 300 | Specifications | Manual |
| SS1VA-M | Screwed | Stainless Steel (ASTM A351 Gr. CF8) | 300 | 428 | Metal | 1000 | |||
| JAH5RA-R | | Screwed | Carbon Steel (ASTM A216 Gr.WCB) | 315 | 212 | FPM | 600 | Specifications | Manual |
| Socket Welded | |||||||||
| Flanged | |||||||||
| JAH7RA-R | | Screwed | Carbon Steel (ASTM A216 Gr. WCB) | 600 | 212 | FPM | 3000 | Specifications | Manual |
| Socket Welded | |||||||||
| Flanged |
- PMO = Maximum Operating Pressure
- TMO = Maximum Operating Temperature
The latest version of each product's instruction manual can be found on this page.
