    Fluid Control Equipment

    Cyclone Separators (Trap Sold Separately)

    DC-L Series/DC3/DC7

    Cyclone Separators of all stainless steel welded construction without the built-in steam trap.

    All stainless steel separator, employing a cyclone-effect to efficiently separate condensate from steam and air.

    Cyclone Separators  Pamphlet (792 KB)

    Benefits and Features

    All Stainless Steel

    Stainless steel construction to prevent rust.

    Supplies Dry Steam or Air

    The built-in Cyclone Separator separates condensate from the flow of steam/air with a high separation efficiency of 98%. This yields improved productivity and product quality due to the resulting elimination of water hammer and the improved dryness of the supplied medium.

    Compact

    Compact, light-weight design.

    Maintenance-free Construction

    The welded unit requires no maintenance.

    Application Areas

    Steam main lines, steamers, blowers, atomizers and kneaders, and a variety of types of steam heating equipment.

    Processes requiring dry air, such as painting machines, and air lines.

    To avoid malfunctions, abnormal operation, accidents or serious injury, install properly and DO NOT use this product outside of the specification range. Local regulations may further restrict the use of this product below the conditions quoted in documentation.

    Product Details

    ModelPhotoConnectionBody MaterialPMO (psig)TMO (°F)SpecificationsManual

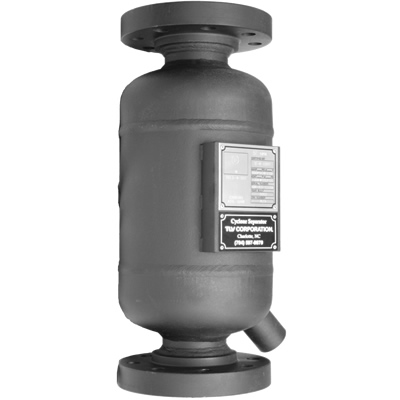

    DC-LFlanged 150#RFCarbon Steel150500SpecificationsEnquire
    Flanged 300#RF300
    DC-LS,
    DC-LUS
    FlangedCarbon Steel550650SpecificationsEnquire

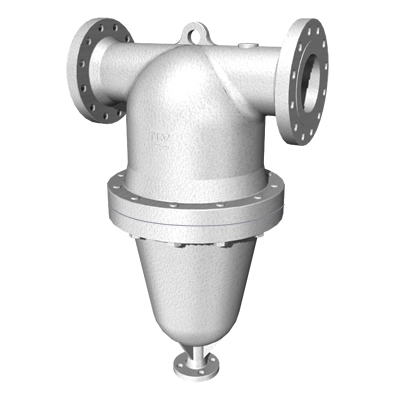

    DC3ScrewedDuctile Cast Iron300428SpecificationsManual
    Flanged
    DC7ScrewedStainless Steel
    (ASTM A351
    Gr.CF8)
    362572SpecificationsManual
    Socket Welded
    Flanged
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature

    The latest version of each product's instruction manual can be found on this page.
