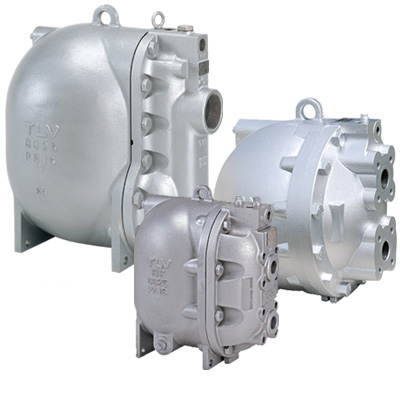

    PowerTrap® (Mechanical Pump with Built-in Trap)

    GT Series

    Reduces the possibility of damage to steam equipment

    This pump is mechanically operated with steam or compressed and does not require electricity.

    Effective at eliminating pooled condensate from inside equipment.

    The PowerTrap® is capable of discharging condensate under conditions in which a steam trap alone would not suffice.

    Suitable for use on closed systems for the complete recovery of condensate heat and water from steam-using equipment.

    PowerTrap® GT/GP Series Pamphlet (1317 KB)

    Benefits and Features

    Energy Conservation

    Recovers and transports condensate in order to recycle heat energy and water resources.
    The snap-action mechanism rapidly switches between sending condensate to the mechanical pump and transporting the condensate, preventing delay-induced leakage of motive medium (steam).

    'Stall' prevention

    Steam-using equipment with a control valve installed on its primary side has a tendency to stall, resulting in process temperature swings, water hammer, and/or tube corrosion. By installing PowerTrap®, this stall phenomenon can be prevented.

    Easy to Operate

    The GT series has an integral steam trap, making it suitable for condensate recovery from equipment that experiences pressure fluctuations from negative to positive pressure.
    The unit is powered by steam, so there is no need for electrical facilities, which makes it suitable for use in explosion-proof installations and other environments where electrical power supply is not an option.
    Designed to allow maintenance without being removed from condensate recovery lines.

    Application Areas

    • Reboilers, heat exchangers, cylinder dryers, air conditioning equipment, absorption cooling machinery, etc.

    Product Details

    Model Photo Connections Filling Head (in) Body Material PMO
    (psig)    		 TMO
    (°F)    		 Motive Medium Pressure Range (psig) Max. Pump Discharge Capacity (lb/h) Built-in Trap Cap. (lb/h) Specifications Manual
    Inlet
    Outlet    		 Motive Inlet
    Motive Outlet    		 Standard Minimum
    GT10L Screwed 25 12 Cast Iron
    (FC250)
    or
    Cast Steel
    (ASTM A216
    Gr.WCB)    		 150 365 5 - 150 3,000 24,000 Specifications Manual
    Flange-less
    (Wafer)    		 Screwed
    GT10M Flanged Screwed 25 12 Cast Iron
    (FC250)
    or
    Cast Steel
    (ASTM A216
    Gr.WCB)    		 150 365 5 - 150 4,700 24,000 Specifications Manual
    GT14 Screwed 25 12 Cast Iron
    (FC250)    		 200 392 5 - 200 12,000 80,000 Specifications Manual
    Screwed Cast Steel
    Flanged
    GT14L Flange-less
    (Wafer)    		 Screwed 25 12 Cast Iron
    (FC250)    		 200 428 5 - 200 4,000 27,000 Specifications Manual
    Cast Steel
    (ASTM A216
    Gr.WCB)

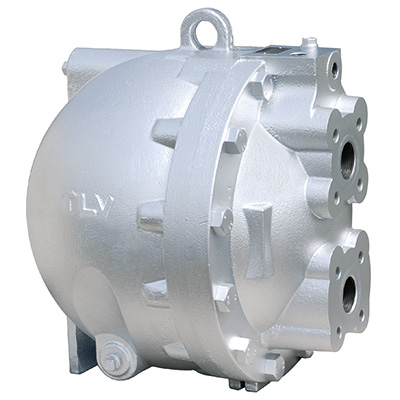

    GT14M Flange-less
    (Wafer)    		 Screwed 25 14 Cast Iron
    (FC250)    		 200 428 5 - 200 6,000 30,000 Specifications Manual
    Cast Steel
    (ASTM A216
    Gr.WCB)
    GT10 Screwed 36 30 Cast Iron
    FC250    		 150 365 5 - 150 17,000 80,000 Specifications Manual
    Cast Steel
    (ASTM A216
    Gr.WCB)
    Flanged Cast Steel
    (ASTM A216
    Gr.WCB)
    • PMO = Maximum Operating Pressure
    • TMO = Maximum Operating Temperature

    The latest version of each product's instruction manual can be found on this page.
